A type Layer cage
The material of this cage
(1) A type automatic broiler battery chicken cage
(2) 3,4,Tiers
(3) Q235 double cold galvanized anti-corrosion
(4) Q235 national standard double cold galvanized bridge steel cage,
(5) white PVC feed trough,
(6) ball type automatic water equipment ,
(7) white PVC pipe ,
(8) 3MM U type galvanized steel shelves,
(9) closed-end pressure-reducer;
(10) Al-Zn material feeding system,
(11) AL-Zn material manure cleaning system,
(12) ventilation system,lighting system,
(13) environment contronlling system.

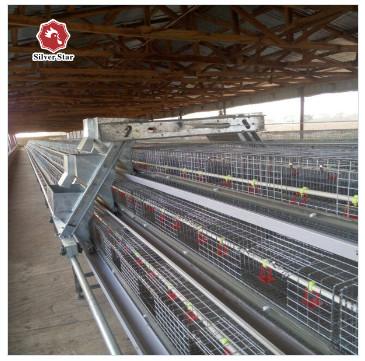

90/96/120/128/160 Birds Layer Chicken Cage System Farming
A Type 3 Or 4 Tiers Laying Poultry Battery Cage
A type layer chicken cage has the following merits: The upper and lower poultry cages are completely staggered, and the common ones are 3 to 4 tiers/floors. There is no need to set up a manure board at the bottom of the cage, also no need to set up a manure cleaning system if it is a manure pit; the structure is simple; the ventilation and illumination of each layer of the cage are large. 3 tiers layer cage per set has the capacity of 90 birds, 96 birds, 120 birds, and 4 tiers layer battery cage per set has 96 birds, 128 birds and 160 birds capacity.
Layer Egg Chicken Battery Cage Product Description
| Model | Each Door Length(cm) | Each Door Depth(cm) | Each Door Height(cm) | Unit Cage Dimension(cm) | Doors/Set | Birds/Door | Birds Qty/Set |
| A3L90 | 43 | 38 | 38 | 195x208x150 | 5 | 3 | 90 |
| A4L120 | 43 | 38 | 38 | 195x218x198 | 5 | 3 | 120 |
| A3L96 | 48.75 | 38 | 38 | 195x208x150 | 4 | 4 | 96 |
| A4L128 | 48.75 | 38 | 38 | 195x218x198 | 4 | 4 | 128 |
| A3L96 | 43 | 41 | 41 | 195x208x160 | 4 | 4 | 96 |
| A4L128 | 43 | 41 | 41 | 195x218x203 | 4 | 4 | 128 |
| A3L120 | 43 | 41 | 41 | 215x208x160 | 5 | 4 | 120 |
| A4L160 | 43 | 41 | 41 | 215x218x203 | 5 | 4 | 160 |
| A3L120 | 39 | 45 | 41 | 195x223x160 | 5 | 4 | 120 |
| A4L160 | 39 | 45 | 41 | 195x230x208 | 5 | 4 | 160 |
Poultry Laying Battery Layer Cage Characteristics:
1. A frame egg layer chicken cage, easy to operate, sturdy and durable;
2. The surface of the battery cage can be electroplated or hot-dip galvanized;
3. Good ventilation and lighting, which is conducive to chicken growth, high egg production rate and low egg broken rate;
4. Small investment, large breeding volume, and good economic benefits.
5. Compared with the H type stacked laying chicken cage system, the investment pg A frame poultry cage system can be reduced.
6. The laying hens can obtain more breeding area and increase the laying rate of the laying hens.
7. It is convenient for maintenance and repair, and the cage system can be controlled according to the prompt steps.
8. Automatic egg conveying system can improve the cleaning rate of eggs.
9. Convenient disinfection, easy to control coccidiosis and other parasitic diseases and worm infections;
10. Automatic drinking water system can ensure equal water pressure in the nipple and ensure the drinking of the layer chicken.
