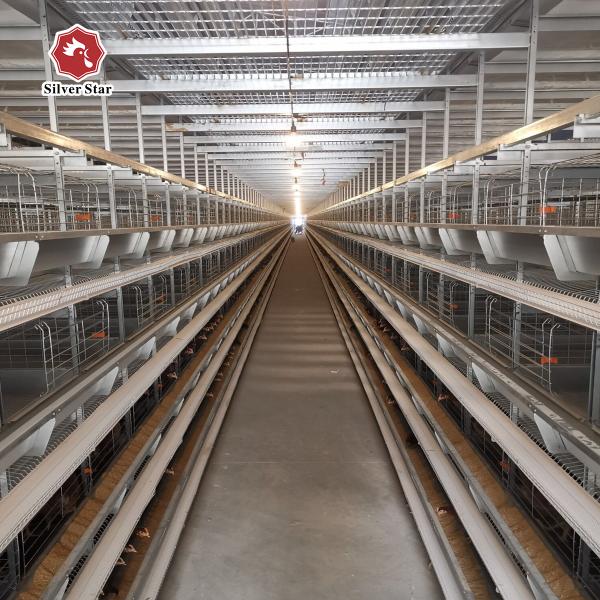

H Type Poultry Equipment Automatic Battery Chicken Cage
H type automatic battery chicken cage include:
1: The main construction of battery chicken cage : 650*625*500mm hot dip galvanized cage mesh and cage frame
2: The Driking system: there are 2 to 3 nipple drinkers for each two cage sections on the PVC pipes which
are located between two cage sections. the “V” shape leakage gutter underneath the water pipes,
holds the water drops and prevent the drops to the manure belt, therefore a drier manure is obtained.
3: The automatic feeding system :
1).It is the feeding system with feed carts. Our feeding system with feed carts which enable adjust to make feed distributed
hygienically, homogeneous, mixed and equally.
2). In this system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe
with90-150 mm diameter.
3). Feed carts are moved by steel cables and 0,751.50 HP(according to the chicken house length and hopper) electric gear motorsover the rails that are located on the top of the cages.
4: Automatic egg collecting system:
1). Automatic egg collection unit made of galvanized sheet and apparatus produced by our advanced own production machines,the egg
bands and lift engine powers are 0.75 -1.50 HP.
2). The egg bands made of import cloth and the joint components made of plastic sheet
5: Automatic manure cleaning system: manure is cleaned and discharged by the Polypropylene (PP) manure belts of 1.10 mm thickness.
These PP belts are locatedunderneath every tier and row of the cages and towed by drive reducer
engines to clean the manure in a flawless way.
6: Automatic ventilation cooling system: cooling the chicken house through the fan and wet curtain. the wind opportunity will pump out the hot air in the chicken house, and the cooling pads will suck the fresh cold air outside into the chicken house. When the temperature is higher than 26 ℃, the wind opportunity will open automatically, and when the temperature is lower than 26 ℃, the wind opportunity will close automatically.
Detailed information of Chicken battery chicken cage:
Material: Q235 national standard bridge steel cages, white PVC trough, Ball-type automatic water equipment, white PVC pipe, 3MM U-type galvanized Steel shelves, closed-end regulator.
The nipple drinker: Automatic water valve device: 360-degree rotating design, traffic, water Enough. Watertight. Chicken is easy to meet drinking water needs. Imports of stainless steel Sphere. Useful life of 15-20 years. 3 years of damage or leakage, free replacement. (Except Artificial damage)
Trough: The new white PVC trough, compression heat and deformation, not broken.
Service life of 15 -20 years. Ability to withstand compression: Any adult can walk on it.
The pipe: White PVC pipe: New PVC material, deformation, high temperature, difficult To damage. Impurities in the water will not produce a chemical reaction, thus ensuring The chickens can drink clean and healthy water. Useful life of 15 years.
The pressure reducer: Closed regulator: Fully enclosed design, voltage regulator and Filter with one, you can adjust the length of the sheds any water pressure. Every chicken Cage line need three pressure reducers. If you have two lines, you need six Leg support: 3MM U-type galvanized steel shelf, national standard 3MM thick steel Plate, U shape design. Can withstand pressure of 350 kg. With double-dip galvanizing, The age of 15 -20 years.
Layer chicken cage specification :
| H type 3/4tiers layer chicken cage |
| Model | Type | Capacity | Cage size | Cell size | Cell capacity | Door | Avergae area |
| 1 | H type 3 tiers | 54 birds/set | 65*218*265cm | 65*62.5*50cm | 9birds/cell | 1door | 451.38cm2 |
| 2 | H type 4 tiers | 72 birds/set | 65*218*330cm | 65*62.5*50cm | 9birds/cell | 1door | 451.38cm2 |
| 3 | H type 5 tiers | 90 birds/set | 65*218*395cm | 65*62.5*50cm | 9birds/cell | 1door | 451.38cm2 |
| 4 | H type 6 tiers | 108 birds/set | 65*218*460cm | 65*62.5*50cm | 9birds/cell | 1door | 451.38cm2 |
| 5 | H type 7 tiers | 126 birds/set | 65*218*595cm | 65*62.5*50cm | 9birds/cell | 1door | 451.38cm2 |
| 6 | H type 8 tiers | 144 birds/set | 65*218*660cm | 65*62.5*50cm | 9birds/cell | 1door | 451.38cm2 |
